VCS Flange Isolating Gasket Kit
Quality G10+SS316 VCS Flange Isolating Gasket Kit you can buy in high quality and factory price
PDF DownLoad
Content
What Is VCS Flange Isolating Gasket Kit?

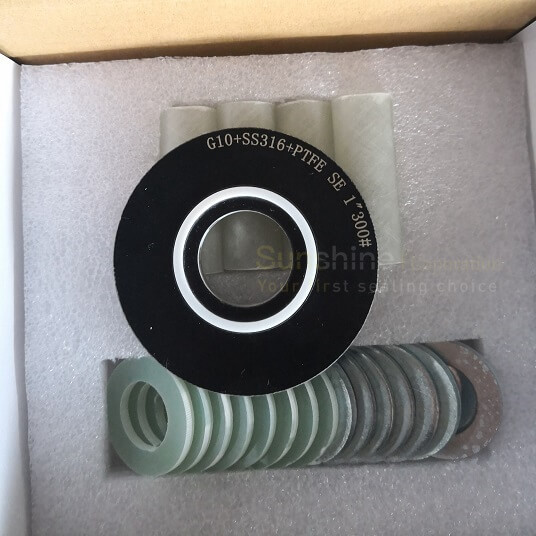

The VCS flange isolating gasket kit is usually made of G10 and SS316 metal core, and it provides exceptional insulating and general sealing performance in aggressive material applications. The VCS flange isolating gasket kit is suitable in all very critical services up to and including ANSI 2500# and API 10,000# classes. And it can match all types of flanges such as raised flange, full face flanges, ring type joint flanges.Due to the unique pressure activated sealing mechanism of the VCS flange isolating gasket kit, it requires far less bolt stress to seal than any other type gaskets. The VCS isolating gasket inner diameter is exactly matched to the flange bore to eliminate turbulent flow and flange face erosion or corrosion. The seal elements are replaceable in the reusable gasket retainer. And our VCS flange isolating gasket kit is equal to Pikotek® VCS® Isolating Gasket kits.
Application of VCS Flange Isolating Gasket Kit
VCS Flange Isolating Gasket kit can be used for insulation in conjunction with cathodic protection, Insulation between dissimilar metals to prevent galvanic corrosion, wellhead isolation from inter-connected flow lines, valve connections, Christmas Tree connections, Compressor connections, Tanks and heat exchangers with sacrificial anodes to increase anode life, mating mismatched ring-joint to raised-face flanges. it can eliminate fluid trap corrosion between ring-joint (RTJ) flanges where high concentrations of CO2, H2S, other aggressive hydrocarbon media are present, and it also can eliminates turbulence and flow-induced erosion between ring-joint (RTJ) flanges.How to Order VCS Flange Isolating Gasket kit?
To order VCS flange isolating gasket kit correctly, we need know below information for your right application.• Flange Specification (ANSI/ASME, API, MSS, BSI or DIN standard)
• Nominal pipe size, pressure rating and bore size
• Operating pressure, temperature and media
• Isolating sleeve and washer material
• Central big gasket material
VCS Flange Isolating Gasket Kit Design
The unique and patented design of VCS flange isolating gasket kit incorporates high-strength, glass-reinforced epoxy laminate bonded to a stainless steel core like stainless steel 316. This provides the strength of a traditional metallic gasket while maintaining complete electrical insulation between the flange faces. Seal grooves are machined through the laminate insulating material and into the stainless steel core. This provides a strong base for the seal to sit into and breaks the potential leak or weep path that is inherent in glass laminate materials. Spring-energized Teflon internal face seals are installed in the dovetail-shaped seal grooves to provide the trademark pressure-activated sealing performance distinguishing the VCS flange isolating gasket kit from all other high pressure insulating gaskets.VCS Flange Isolating Gasket Kit Components Materials
| Central big gasket | G10 or G11 |
| Metal Core | SS316 or other steel metal |
| Sealing Ring | Spring-energized PTFE |
| Thickness | 6.2mm or 7.8mm |
| Insulating washers | G10, G11, G7, Phenolic |
| Insualting Sleeves | G10, G11, Mylar, Phenolic, Nomex |
| Steel Washers | Zinc plated carbon steel or stainless steel |
