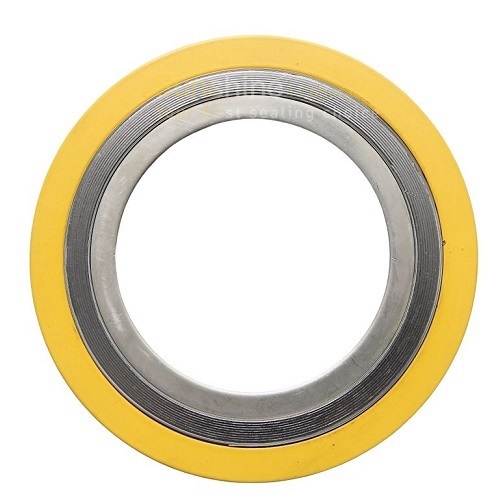

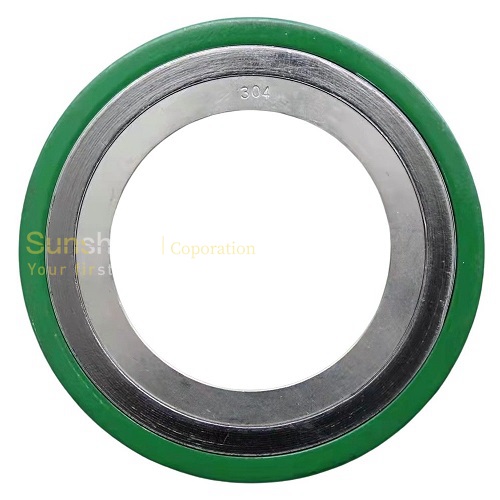

Spiral Wound Gasket with Graphite Filler
Buy SS 304 or SS 316L Spiral Wound Gasket with Graphite Filler from us in high quality and good price
Content
What is Spiral Wound Gasket with Graphite Filler?
Spiral wound gasket with graphite filler is made of V-shape SS316L or SS 304 stainless steel strip tape and graphite filler. As this kind of gasket is the combination of metal strips and a softer filler material, so the spiral wound gasket with graphite filler offers both good structural support and an excellent seal even with imperfect flange faces. Spiral wound gaskets are available in a variety of metals and materials – allowing for a wide range of structural densities – according to the demands of each application.Application of Spiral Wound Gasket with Graphite Filler
Spiral wound gasket with graphite filler is particularly suitable for complex equipment in the petroleum, chemical and gas, industrial and marine industries. They can be used in water, steam, oil, solvents and other common industrial chemicals. Its excellent resistance to high remperatures and pressures mean it is ideal for pipe line flanges, heat exchangers, valve bonnets, boiler manholes, hand holes and tube caps. Our Spiral wound gasket with graphite filler can be tailor-made with almost any combination of metal or non-metal materials.Why Use Graphite Tape as the Filler of Spiral Wound Gasket?
It is because the graphite tape has many advantages such as it can be used from -250°C to Estimated 650°C based on setting up as well as performing conditions. And it has long term steadiness of compressibility and recovery over a wide temperatures range. It lacks of binders means no ageing or embrittlement and it has high effectiveness against chemical media and radiation. Low permeability to gases and liquids.All Types of Fillers for Spiral Wound Gasket
| Winding Filler | Abbreviation | Min temp ℃ | Max Tem ℃ | Strip color code |
| Ceramic | CER | -212 | 1100 | LIight Green |
| Flexible Graphite | FG | -200 | 600 | Gray |
| PTFE | PTFE | -260 | 260 | White |
| Mica graphite | MICA-GRA | -200 | 860 | Pink |
Related Category

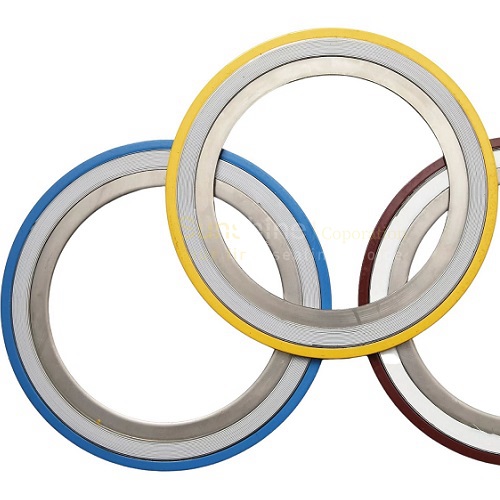

CGI Spiral Wound Gasket

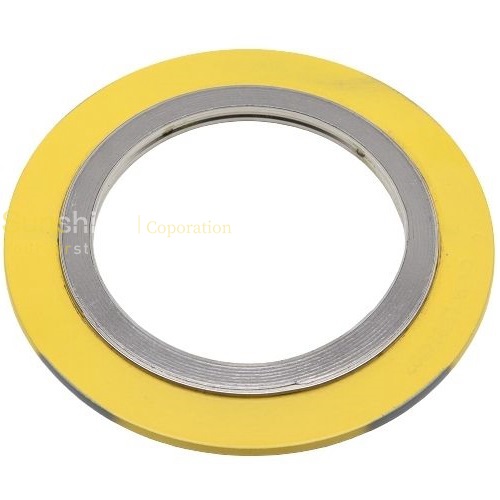

CG Spiral Wound Gasket

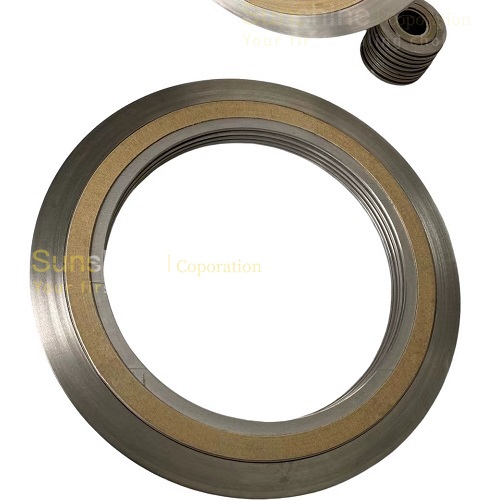

Vermiculite Filler Spiral Wound Gasket
