OFHC Copper Gasket for CF Vacuum Flanges
We have over 8000+ pcs OFHC copper gasket for CF vacuum flanges in Stocks. Contact us for more information
Content
What is OFHC Copper Gasket for CF Vacuum Flanges?
OFHC copper gasket for CF vacuum flanges are made of Tu2 and the CU content is over 99.97%. These OFHC copper gasket for CF vacuum flanges fit a conflat flange size CF 16 to CF 250. ConFlat (CF) Vacuum flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450°C for bake-out.
OFHC Copper Gasket for CF Vacuum Flange Specification

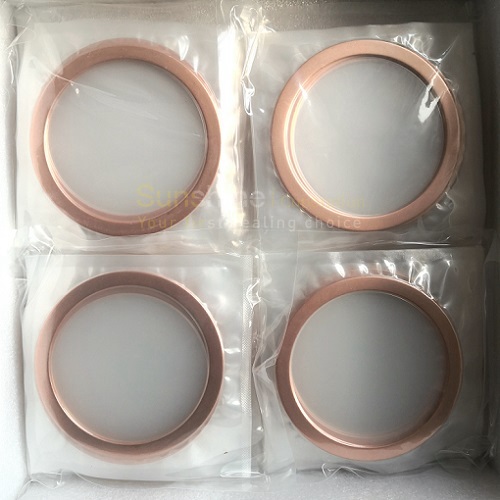

The thickness of the OFHC copper gasket for CF vacuum flange is 2.2 mm.Package: Single Vacuum Package, 1 piece per package.
Why Choose Our OFHC Copper Gasket for CF Vacuum Flanges?
As the one of China leading manufacturer of OFHC copper gasket for CF vacuum flange, our OFHC copper gasket you can buy with Factory price and high quality. Below is 7 points why choose us.1. After gaskets finished, Electroplating treatment Anti-oxidation blackening
2. The OFHC Copper purity is 99.97% Cu content.
3. Produce large quantity per time, quality steady.
4. 2.2 mm thickness better than 2 mm thickness
5. High dimensional accuracy, tolerance 0.02mm
6. Precision machined, not stamped
7. Standard single vacuum package
OFHC Copper Gasket sizes
| Gasket sizes | Gasket ID (mm) | Gasket OD (mm) | Thickness (mm) |
| CF16 | 16.2 | 21.3 | 2/2.2 |
| CF25 | 25.6 | 35 | 2/2.2 |
| CF35 | 36.8 | 48.1 | 2/2.2 |
| CF50 | 52 | 61.6 | 2/2.2 |
| CF63 | 63.6 | 82.4 | 2/2.2 |
| CF80 | 82 | 99 | 2/2.2 |
| CF100 | 102 | 120.5 | 2/2.2 |
| CF150 | 152.5 | >171.3 | 2/2.2 |
| CF200 | 203 | 222.1 | 2/2.2 |
| CF250 | 254 | 273.1 | 2/2.2 |
