Spiral Wound Gasket Weight Chart

2024-03-18

Here you will get the spiral wound gasket weight chart table, the spiral wound gasket is made in accordance to ASME B16.20, MSS SP-44, API 605, DIN 2632-2638 DIN EN1514-2, JIS B2404, BS EN1514-2, etc.

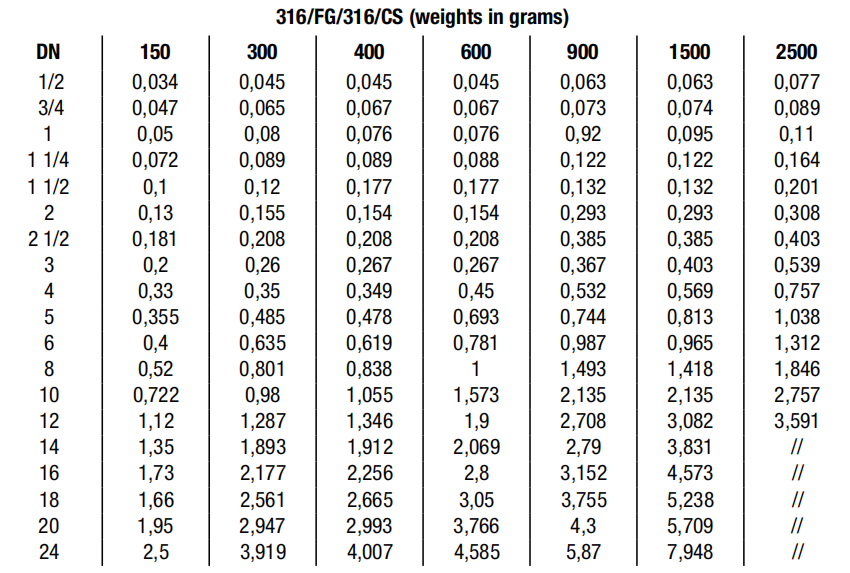

Spiral Wound Gasket with Outer Ring Weight Chart

Spiral Wound Gasket with outer Ring Weight charts

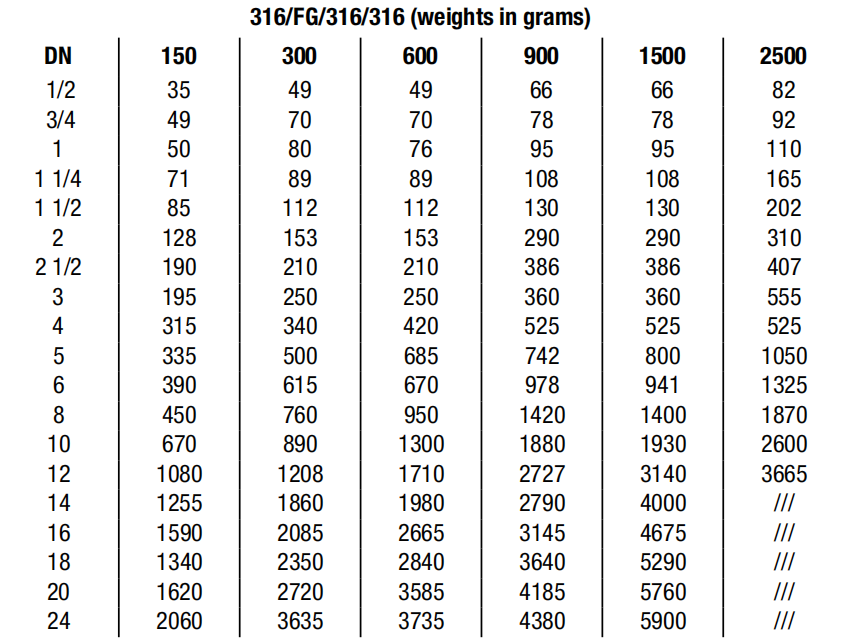

Spiral Wound Gasket with Inner and Outer Ring weight chart

Spiral Wound Gasket with Inner and Outer Ring weight charts

Spiral Wound Gasket with Inner and Outer Ring weight chart - SS Outer ring

Spiral Wound Gasket with Inner and Outer Ring weight chart Table
